Multiparker 750

Multiparker 750 2

Multiparker 750 3

Multiparker 750

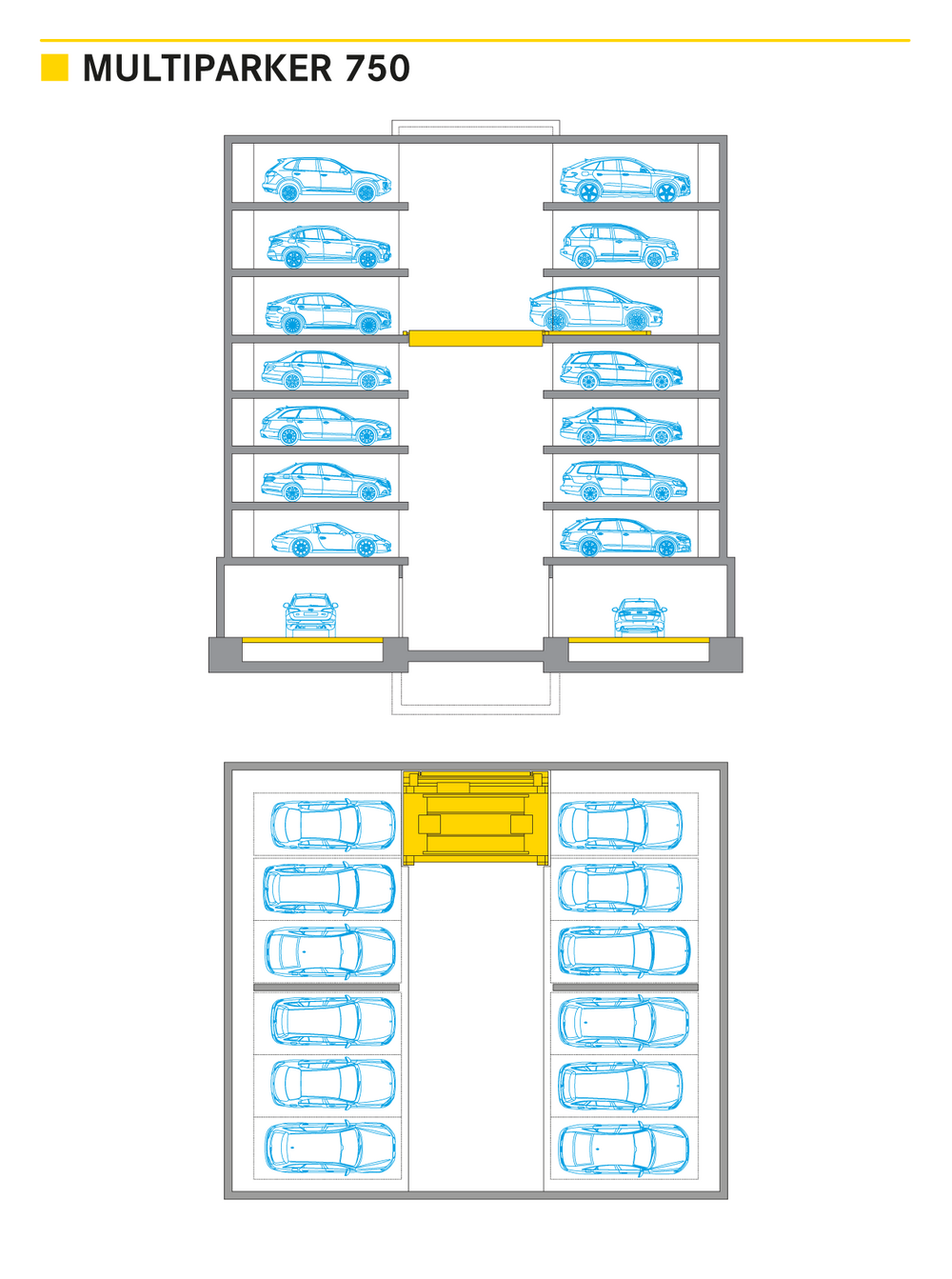

Multiparker 750 offers parking places in a concrete structure without steel pallets and in up to 30 levels high.

The Multiparker 750 is suitable for construction cubes similar to a high rack made out of concrete, with tower or pit version. This solution is often particularly cost-effective in the event of underground structures and even with small foot print areas parking places suited up to 30 parking levels high. The car is driven into one of the transfer areas, picked-up by a longitudinal pick-up transport system (LAT) which takes the it by means of a shuttle and vertical lift directly to the provided car park place on the concrete slab.

Specifications

Automatically operated parking system for 40 to more than 100 cars

As tower and/or pit version provided up to 30 parking levels high

Multiple row arrangement with up to 3 parking rows behind each other

Well adaptable to individual project requirements

Safe for user and cars (no narrow ramps, dark stairs, no damage caused by theft or vandalism)

Customazible arrangement of transfer area

No handling of empty pallets occurs to fast access times

No ramps and driving lanes

No costly illumination and ventilation necessary

Different car heights possible, e.g. Vans

For car weight up to 2,500 kg

Easy operation with several control options, e.g. RFID chip or remote control

Suitable residential and office building an for public parking

Following the idea of "Green-Parking"

Product variants

Multiparker 750
